Tom's Gears

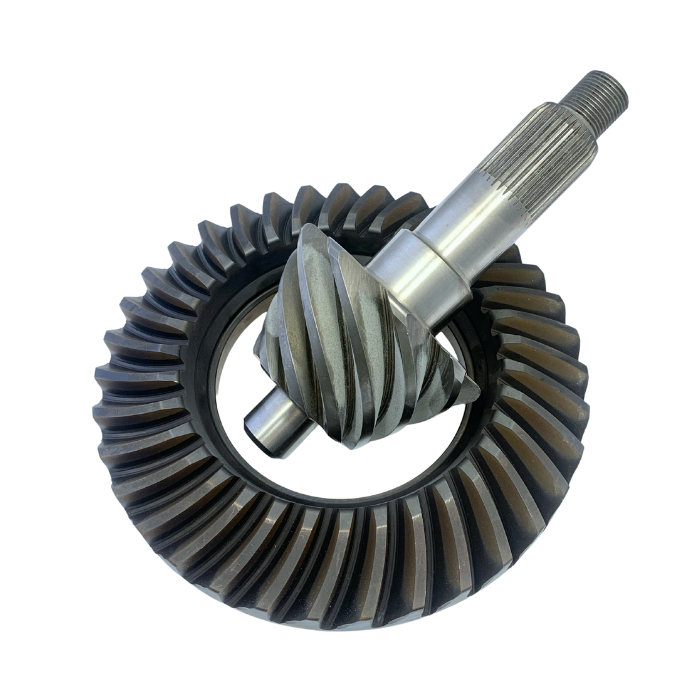

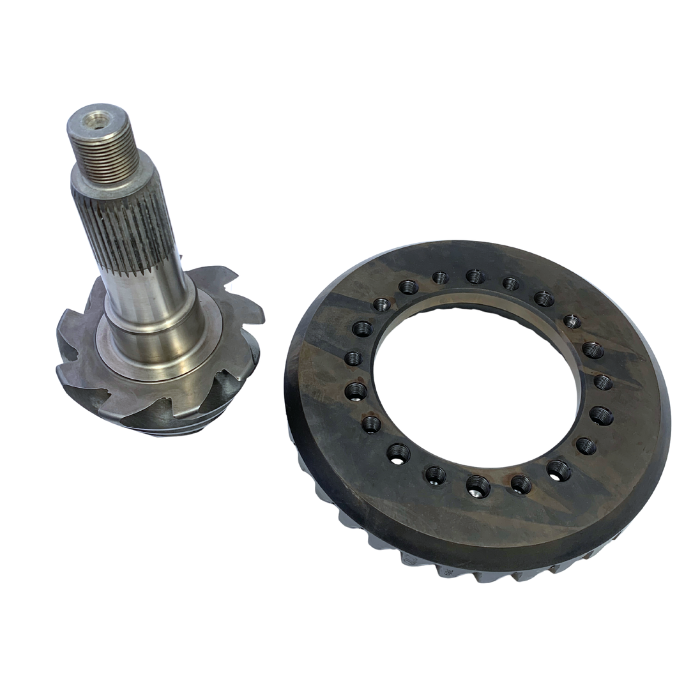

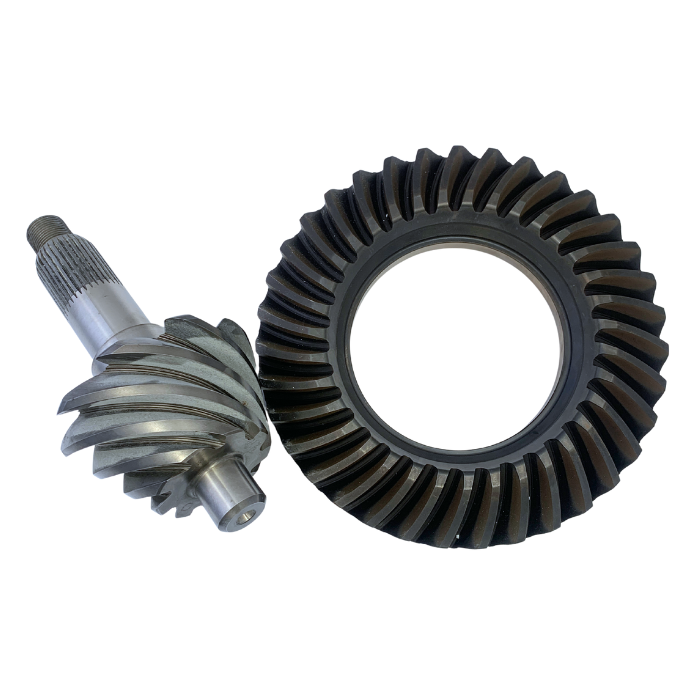

Tom's Gears Ford 10" PRO 4.29 Ratio 9310 Steel Crown Wheel & Pinion Gear Set

Tom's Gears Ford 10" PRO 4.29 Ratio 9310 Steel Crown Wheel & Pinion Gear Set

SKU: T10F-4.29

PART #

$3,650.00
$3,650.00
SALE Sold out
GST included. Shipping calculated at checkout.
In stock - Ready to ship

App/Model:  Ford 10" | Racing Use Only - Not Recommended for Road Use

10" pitch diameter, 9.43" physical ring diameter. Requires matching case and pinion front bearing support. Can be used in most 9" housings with extra clearance modifications. All 10" gears have 35 spline input and use 1/2" ring gear bolts

Manufactured from ultra-tough 9310 steel, these gears are specifically engineered for drag racing and competition use where extreme torque loads and high horsepower are the demanded. Unlike street gears, Pro Gears are designed for the strip, trading longevity for the ability to withstand repeated hard launches and shock loading without failure.

Toms Gears are cut using a 10" Development! Meaning while the ring gear actually measures 9.4" in dia. the teeth are much wider and larger for a great deal of increase in strength as well as achieving more efficiency due to the pinion being more cantered with the ring gear.

Specifications:

  • 10" Ring Gear Diameter
  • 35 Spline Pinion
  • 1.875 Pinion Stem
  • 9310 material

NOTE: 9310 Pro Gears are not intended for street use, their softer composition maximizes shock absorption but results in shorter wear life under constant driving.

Also Available in the following Gear Ratios:

Vehicle Applications:

Specifications:

Material: 9310 - Top Fuel/Drag Race Material
Ring Gear Diameter (in.): 10.000 in.
Ring Gear Bolts: 10 - 1/2" x 20 RH
Cover Bolts: 10
Pinion Shaft Diameter (in.): 1.875 in.
Pinion Spline Count: 35
Ring and Pinion Ratio: 4.29

Additional Information:

Manufactured from ultra-tough 9310 steel, these gears are specifically engineered for drag racing and competition use where extreme torque loads and high horsepower are the demanded. Unlike street gears, Pro Gears are designed for the strip, trading longevity for the ability to withstand repeated hard launches and shock loading without failure.

Toms Gears: These gears are cut using A 10" Development! Meaning while the ring gear actually Measures 9.4" in dia. the teeth are much wider and larger for a great deal of increase in strength as well as achieving more efficiency due to the pinion being more cantered with the ring gear.

NOTE: 9310 Pro Gears are not intended for street use, their softer composition maximizes shock absorption but results in shorter wear life under constant driving.
