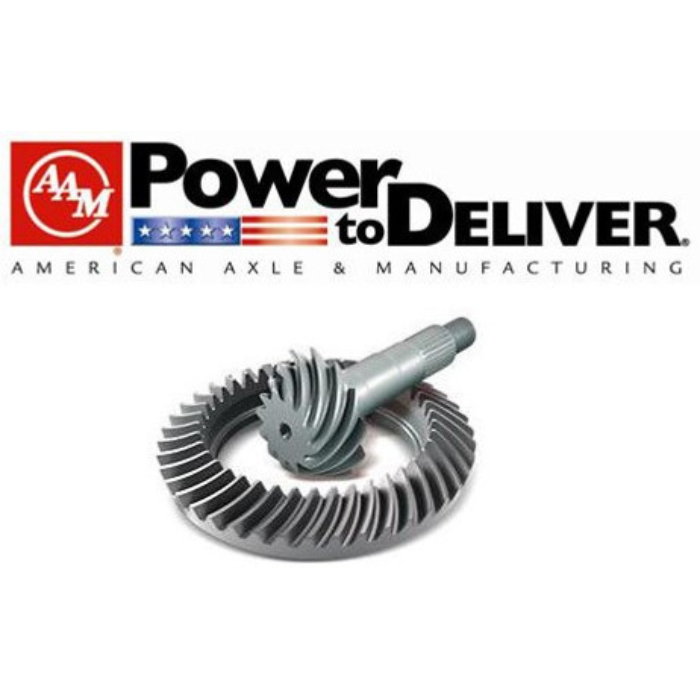

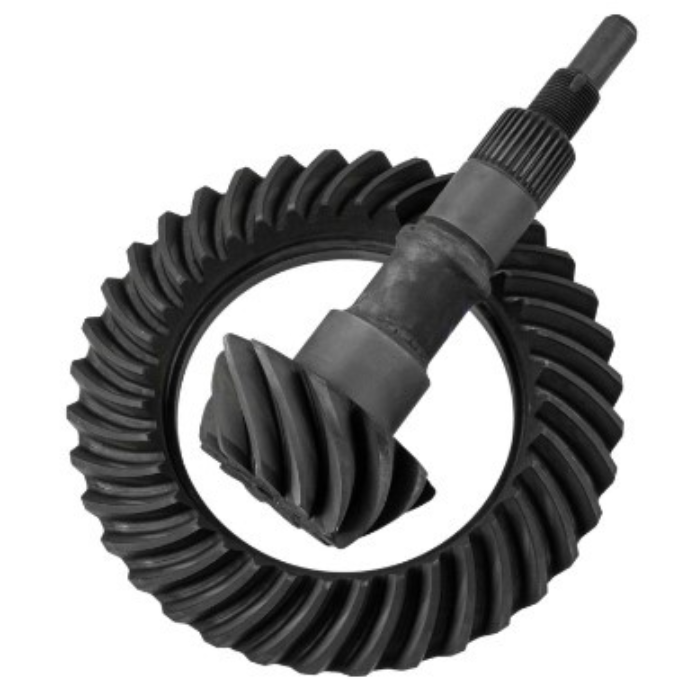

AAM GM 8.6" IRS (218mm) Camaro V8 '10-'15 3.45 Ratio Crown Wheel & Pinion Gear Set

AAM GM 8.6" IRS (218mm) Camaro V8 '10-'15 3.45 Ratio Crown Wheel & Pinion Gear Set

SKU: 40037664

PART #

Regular price $970.00
Regular price Sale price $970.00
Sale Sold out
GST included. Shipping calculated at checkout.
In stock - Ready to ship

Shipping Calculated at Checkout

GM 8.6" IRS; Performance Ring and Pinion Gear Set; 3.45 Ratio; Excludes ZL1

Vehicle Applications:

2010-2015 GM Camaro (V8)
Excludes ZL1

Specifications:

Cover Bolt Quantity 10
Differential Case Design Type GM 8.6 IRS
Pinion Gear Tooth Quantity 11
Pinion Shaft Diameter 1.87 (Inch)
Pinion Spline Count 32
Ring & Pinion Gear Ratio 3.45
Ring Gear Bolt Quantity 10
Ring Gear Diameter 8.6 (Inch)
Ring Gear Material 8620 Steel
Ring Gear Rotation Standard

Additional Information:

Description:

AAM ring and pinion gear sets are uniquely designed to match the requirements the OEM Ring & Pinion designated for your specific vehicle. All performance factors for the size and weight of the specific vehicle must be taken into account. Our innovative "Two-Cut" manufacturing process ensures the lowest tolerances possible for the quiet operation required by our OEM Ring & Pinion customers. This "Two-Cut" design also allows for easier set up in the aftermarket replacement business. The combination of materials, heat treating and cut geometry allows for a gear set that has ten-times the life of a non-OEM Ring & Pinion gear set.
