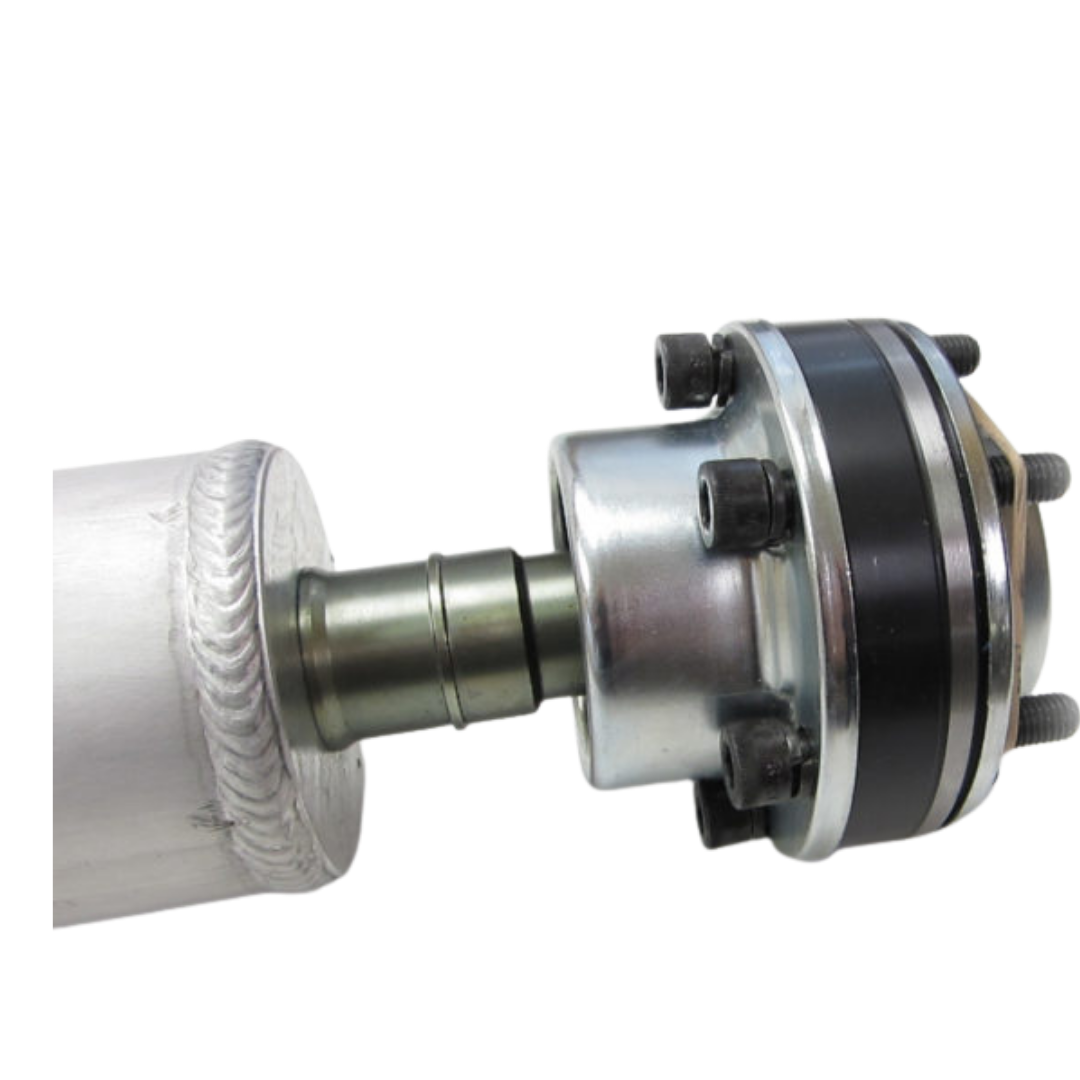

DSS 2015-2017 Ford Mustang GT Automatic 3.5″ Aluminium 1-Piece Direct Fit CV Driveshaft

DSS 2015-2017 Ford Mustang GT Automatic 3.5″ Aluminium 1-Piece Direct Fit CV Driveshaft

SKU: 610269

PART # FDSH54-A

$2,315.00
$2,315.00
Sale Sold out
GST included. Shipping calculated at checkout.

Shipping Calculated at Checkout

This new design eliminates the adapter plate at the rear end with a precision ground CV to fit inside the pinion flange just like the factory. This new design sheds weight from adapter plates while increasing power holding ability and drivetrain response. Our driveshaft will be an athletic upgrade from the factory soft rubber mounted shaft. Now offering solid connections, perfect alignment, and our new CV with chromoly internals / Spicer 1350 U-joint combination to get the power to the ground. Designed to hold over 1000+ horsepower, so even the most extreme engine modifications won’t be a problem.

1. 3.5″ diameter aluminum construction.
2. Billet aluminum endcaps.
3. 300M Chromoly spline plugs.
4. High-speed precision ground CV joint with chromoly internals. Has twice the range of the previous design.
5. Spicer 1350 series solid U-Joint.
6. Forged aluminum U-Joint flange.
7. 1000+ hp Rating.

For Higher Speed Ratings refer to our Carbon Fibre upgrade available HERE

This is a Pre-Order - made to order item and typically requires 5-6 Weeks build time.  Please read our Pre-Order Policy HERE

IMPORTANT NOTE: For your warranty to be valid please read the below document:

DSS Driveshaft Installation Instructions  & Torque Specifications - 2015+ Mustang

Please Note:  Failure to follow the below instructions may damage the driveshaft and void the warranty.

– Emergency brake cable bracket clearance/ relocation may be necessary.

WARNING: Rear Subframe/Cradle Lock-out kit MUST BE INSTALLED on the vehicle PRIOR to installing a Driveshaft Shop 1-Piece Driveshaft. Any damage to the driveshaft (or any subsequent damage) caused by failing to properly reinforce the rear cradle and limit movement will VOID ANY AND ALL WARRANTY provided by The Driveshaft Shop.

Vehicle Applications:

2015-2017 Ford Mustang GT Automatic

Specifications:

Manufactured in USA by the DriveShaft Shop (DSS)
1000+ hp and ***700 ft lbs of torque***
3.5″ diameter chromoly construction
Billet aluminium endcaps
300M Chromoly spline plugs
High-speed precision ground CV joint with chromoly internals.
Has twice the range of the previous design
Spicer 1350 series solid U-Joint
Forged aluminium U-Joint flange
Warranty: 12 months Parts Only

Additional Information:

New from The Driveshaft Shop! We have developed a DIRECT FIT rear CV Driveshaft for your 2018+ Ford Mustang GT V8! This new design eliminates the adapter plate at the rear end with a precision ground CV to fit inside the pinion flange just like the factory, and also sheds weight from adapter plates while increasing power holding ability and drivetrain response. Our driveshaft will be an athletic upgrade from the factory soft rubber mounted shaft. Now offering solid connections, perfect alignment, and our new CV with chromoly internals / Spicer 1350 U-joint combination to get the power to the ground. Designed to hold over 1000+ horsepower, so even the most extreme engine modifications won’t be a problem.

Please Note – Emergency brake cable bracket clearance/ relocation may be necessary. Failure to check this clearance may damage the driveshaft and void the warranty.

Description:

DriveShaft Shop engineers have been creating and manufacturing innovative drivetrain solutions for street and racing use for over 30 years. DSS axles and driveshafts have been fundamental in helping racers set and reset world records. We offer the highest quality CV axles and driveshafts made from Steel, Aluminum, and Carbon Fiber for Sport Compact, European and Modern Muscle applications. We specialize in custom CV Axles and Driveshafts to fit any custom need.
