DSS Holden Commodore VE/VF Sedan with TH400 Transmission Aluminium 1-Piece Driveshaft

DSS Holden Commodore VE/VF Sedan with TH400 Transmission Aluminium 1-Piece Driveshaft

SKU: 610156

PART # GMG8SH4-A

Regular price $2,335.00
Regular price Sale price $2,335.00
Sale Sold out
GST included. Shipping calculated at checkout.

Shipping Calculated at Checkout

2006-2017 Holden Commodore VE-VF Sedan with TH400 Transmission; 258KPH / 160MPH MAX SPEED RATING

This is a Pre-Order - made to order item and typically requires 5-6 Weeks build time.  Please read our Pre-Order Policy HERE

IMPORTANT NOTE- for your warranty to be valid please read the below document

DSS Driveshaft Installation Instructions  & Torque Specifications - Holden VE-VF Sedans/Utes

Vehicle Applications:

2006-2017 Holden Commodore VE-VF Sedan with TH400 Transmission

Specifications:

Manufactured in USA by the DriveShaft Shop (DSS)
258KPH / 160MPH MAX SPEED RATING
Direct Bolt-In
3.50” Aluminium
1 Piece Driveshaft with Direct Fit Rear Flange
1350 Series Billet Trans Yoke

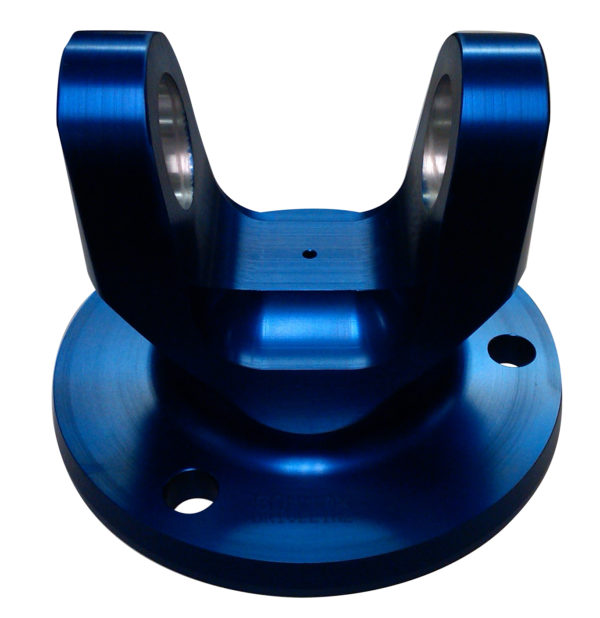

7075-T6 aluminium 1350 u-joint flange
Total Weight 10kg
1,400 HP Rating
Warranty: 12 months Parts Only

Additional Information:

Description:

Available now for the Commodore VE-VF Sedan (with a TH400 swap ONLY) is our 3.50″ aluminium shaft. We have done extensive testing with stock rears and with our 9″ kit and believe this to the most cost-effective trouble-free driveshaft for the VE-VF available today. The shaft will come with a direct fit rear flange, so you don’t have to go into the rear to swap the diff flange and taking a chance on upsetting the crush collar. The shaft only weighs 10kg and comes with grade 12.9 hardware with back up lock nuts to ensure no loose bolts.

You will have to remove the heat shield from above centre hanger mount to install a 3.50″ shaft and there is a possibility of clearance issues with aftermarket exhausts. This is a general warning; we have several test shafts out and not one had an issue. I have listed this because not all exhaust systems have been tested.

We have recently taken delivery of a new type balancing machine. This new machine, can spin a 8kg/17lb shaft to actual speeds of over 9000 RPM. Most driveshaft balancers only spin from 400-3000 RPM (most average about 1000 RPM). This machine was custom made for us and high-speed balancing is offered as a separate service, only from The Drive Shaft Shop.
