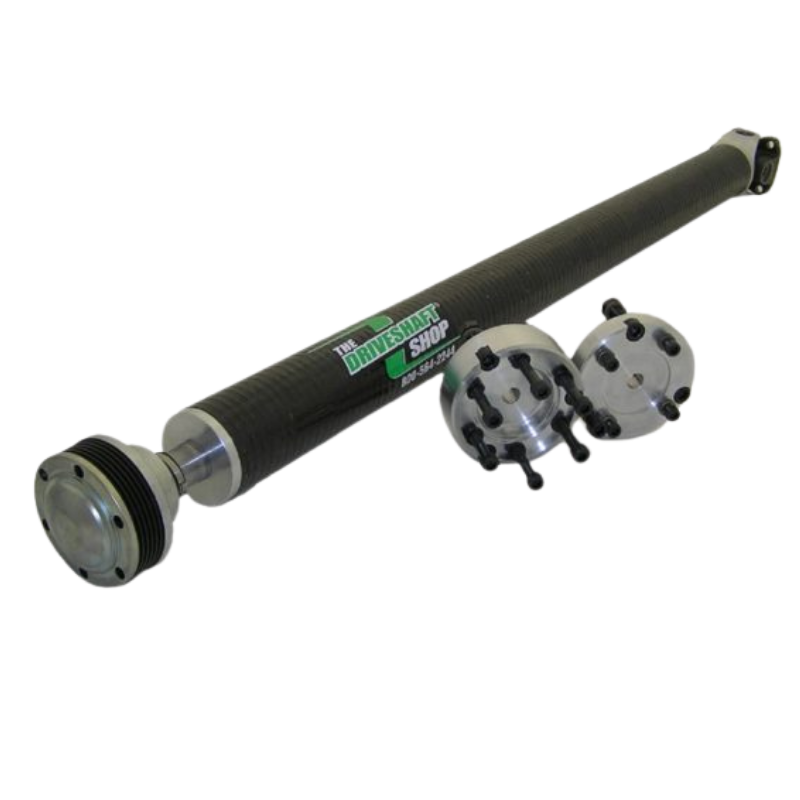

DSS Holden Commodore VE/VF UTE Carbon Fibre 1-Piece CV Driveshaft (Automatic)

DSS Holden Commodore VE/VF UTE Carbon Fibre 1-Piece CV Driveshaft (Automatic)

SKU:

PART # GMGUSH7-C-CV

Regular price $3,720.00
Regular price Sale price $3,720.00
Sale Sold out
GST included. Shipping calculated at checkout.

Shipping Calculated at Checkout

2006-2017 Holden Commodore VE-VF Ute (Automatic Transmission); 338KPH / 210MPH MAX SPEED RATING

VE Models will require park brake cables to be re-routed to create driveshaft clearance, or removed and vehicle fitted with electric E-STOPP park brake system.

VF Models run electric hand brake, therefore, do not have cable issue.

This is a Pre-Order - made to order item and typically requires 5-6 Weeks build time.  Please read our Pre-Order Policy HERE

    Benefits of Carbon Fibre:

    • Smoother transfer of power at launch and between shifts
    • Reduced shock load to the drivetrain and the rear tyres
    • Improved 60ft times
    • Read more HERE

    IMPORTANT NOTE: For your warranty to be valid please read the below document:

    DSS Driveshaft Installation Instructions  & Torque Specifications - Holden VE-VF Sedans/Utes

    Vehicle Applications:

    2006-2017 Holden Commodore VE-VF Ute (Automatic Transmission)

    Specifications:

    Manufactured in USA by the DriveShaft Shop (DSS)
    338KPH / 210MPH MAX SPEED RATING
    Direct Bolt-In
    3.25” Carbon Fibre
    1 Piece Driveshaft with CV
    Total Weight 13.5kg
    1400 HP Rating
    Warranty: 12 months Parts Only

    Additional Information:

    Description:

    Available now for the Commodore VE-VF Sedan is our 3.25″ Carbon fibre shaft with CV. We have done extensive testing with stock rears and with our 9″ kit and believe this to the most cost-effective trouble-free driveshaft for the VE-VF available today. The shaft will come with our signature billet plates for each end so you don’t have to go into the rear taking a chance on upsetting the crush collar. Our shaft comes with a 300m stub system mounted into a billet aluminium plate to ensure not only strength but lighter weight than the normal way of doing this type of end (look closely at the CV end, it’s not all steel). The shaft only weighs 13.5kg and comes with grade 12.9 hardware with back up lock nuts to ensure no loose bolts. We have been using this billet aluminium style plate for over 10 years on thousands of 1000+Hp Supras, BMWs and many more without any bolt issues.

    You will have to remove the heat shield from above centre hanger mount to install a 3.25″ shaft and there is a possibility of clearance issues with aftermarket exhausts. This is a general warning; we have several test shafts out and not one had an issue. I have listed this because not all exhaust systems have been tested.

    VE Models will require park brake cables to be re-routed to create driveshaft clearance, or removed and vehicle fitted with electric E-STOPP park brake system.

    VF Models run electric hand brake, therefore, do not have cable issue.

    We have recently taken delivery of a new type balancing machine. This new machine, can spin a 8kg/17lb shaft to actual speeds of over 9000 RPM. Most driveshaft balancers only spin from 400-3000 RPM (most average about 1000 RPM). This machine was custom made for us and high-speed balancing is offered as a separate service, only from The Drive Shaft Shop.
