Driveshaft Shop

DSS Holden Commodore VZ Sedan HSV Gen IV LS2 (ONLY) Aluminium 1- Piece Driveshaft (Billet Direct Fit Rear Flange)

DSS Holden Commodore VZ Sedan HSV Gen IV LS2 (ONLY) Aluminium 1- Piece Driveshaft (Billet Direct Fit Rear Flange)

SKU: 610106

PART # GTOSH2-A-0506

Regular price $2,065.00
Regular price Sale price $2,065.00
Sale Sold out
GST included. Shipping calculated at checkout.
Pre-Order - Shipping based on ETA of Product

Shipping Calculated at Checkout

2006 Holden Commodore VZ Sedan V8 HSV Gen IV LS2 engine vehicles ONLY (Automatic/Manual Transmission); 250KPH / 155MPH MAX SPEED RATING

This is a Pre-Order - made to order item and typically requires 5-6 Weeks build time.  Please read our Pre-Order Policy HERE

For higher speed rating refer to our Carbon Fibre upgrade available HERE

NOTE:  The only necessary modification is the tip of the rear seat belt bolt that protrudes into the driveshaft tunnel must be ground down to provide adequate clearance for the driveshaft.

Vehicle Applications:

2006 Holden Commodore VZ Sedan V8 HSV Gen IV LS2 engine vehicles ONLY (Automatic/Manual Transmission)
2006 Holden Monaro/GTO
2006 Pontiac GTO

Specifications:

250KPH / 155MPH MAX SPEED RATING
Billet Trans Yoke

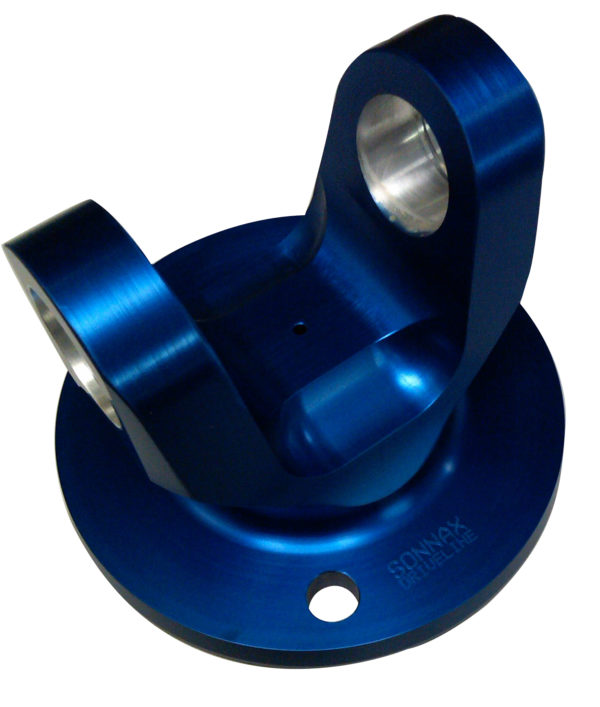

7075-T6 Aluminium Direct fit Flange Yoke
Solid 1350 u-joints
3.5” Aluminium
1 Piece Driveshaft
Total Weight 10kg
1400 HP Rating
Warranty: 12 months Parts Only

Additional Information:

Description:

This 1400HP 1-piece driveshaft from DSS, made from 3.5” Aluminium, comes with 7075-T6 Aluminium 1350 series Direct fit Flange Yoke that will bolt directly to the 3-finger flange on the rear, eliminating the adapter plate.

Just unbolt the factory 2-piece shaft, install the 1-piece shaft with the included hardware and go. The only necessary modification is the tip of the rear seat belt bolt that protrudes into the driveshaft tunnel must be ground down to provide adequate clearance for the driveshaft. Changing the shaft in this car is perhaps one of the most noticeable performance enhancements you can do as the car will have better throttle response and feel smoother overall. Not only is it lighter but the hanger bearing on the factory driveshaft moves up and down violently when the car is being driven hard. This action is not only dangerous but robs the drive train of power.

This driveshaft is balanced on our new exclusive 9500Rpm balancing machine. This new machine, can spin a 8kg/17lb shaft to actual speeds of over 9000 RPM. Most driveshaft balancers only spin from 400-3000 RPM (most average about 1000 RPM). This machine was custom made for us and high-speed balancing is offered as a separate service, only from The Drive Shaft Shop.
