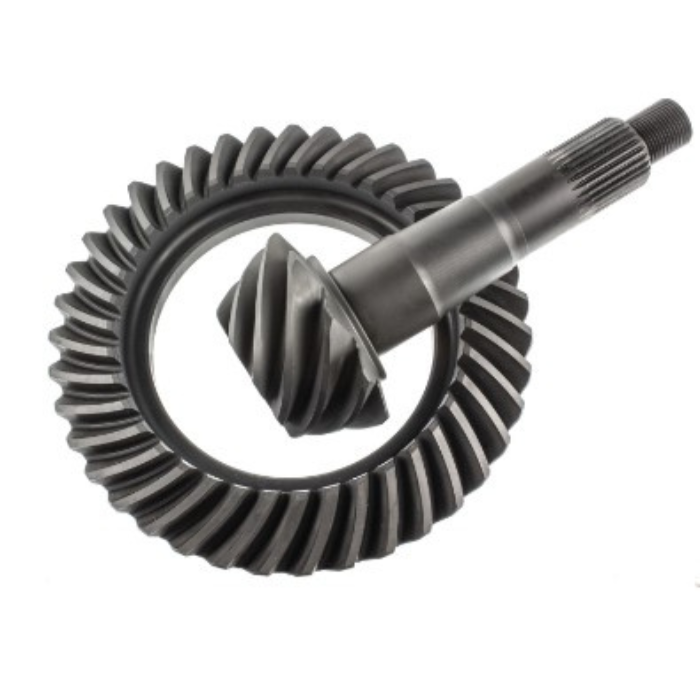

Richmond Gear GM 8.25" '63-79 Corvette 3.08 Ratio Crown Wheel & Pinion Gear Set

Richmond Gear GM 8.25" '63-79 Corvette 3.08 Ratio Crown Wheel & Pinion Gear Set

SKU: 49-0097-1

PART #

Regular price $0.00
Regular price Sale price $0.00
Sale Sold out
GST included. Shipping calculated at checkout.
Contact for Price, Availability and Shipping ETA

Shipping Calculated at Checkout

Requires a 2.41 to 3.70 Ratio Carrier

Vehicle Applications:

1963-1979 Chevrolet Corvette

Specifications:

Cover Bolt Quantity: 8
Differential Carrier Break: 2.41 to 3.70 Ratio
Differential Model: 63-79 Corvette
Pinion Gear Tooth Quantity: 13
Pinion Shaft Diameter: 1.625 Inch
Pinion Spline Count: 30
Ring & Pinion Gear Ratio: 3.08
Ring Gear Bolt Quantity: 10
Ring Gear Diameter: 8.2 Inch
Ring Gear Material: 8620 Steel
Ring Gear Rotation: Standard
Ring Gear Tooth Quantity: 40

Additional Information:

Description:

Richmond Gear ring and pinions are perfect for any vehicle where performance and durability matters. Made from first-run steel, never recycled material, Richmond ring and pinions handle the extreme torque from high horsepower engines. Extensive engineering, computer-controlled heat treatment, superior strength, quality and the widest selection of racing gear ratios available, make Richmond Gear the clear winner! Winners Run Rich
