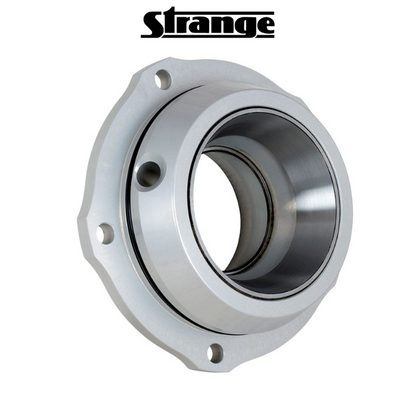

Strange Ford 9" Aluminium Pinion Support for Drag Racing

Designed Specifically For Drag Racing
Fits Ford 9″ cases

Body
• Billet aluminum
• Lighter than nodular iron
• Ability to endure greater shock loads
• Reduced oil passage increases rigidity
• Machined for oversized races
• Fits 28 or 35 spline pinions
• Clear anodized finish

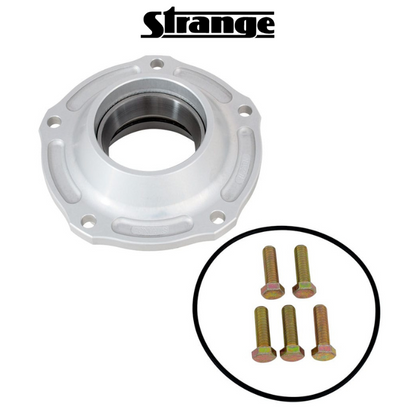

Includes
• Front & rear races
• O-ring
• Support bolts

Requires Bearing Kit & Yoke
Bearing sizes exceed OEM Ford and Ford Daytona
OEM yokes are too long for pinion nut to fully engage threads
Couplers are already made to the correct length

Heavy duty Drag Race pinion support. It uses even larger front and rear pinion bearings than the Daytona or N1917, further increasing load capabilities to suit the most demanding requirements. Manufactured from billet aluminum, it offers better grain flow than billet aluminum supports. Oil channels have been reduced to allow more material around the race sections to maximize rigidity.

It can accept either 28 or 35 spline pinion gears, and comes in a clear anodized finish. The support is supplied with front and rear races installed, bolts, washers, and an O-ring. Bearing & seal kit is available separately. Manufactured from 2024-T4 billet aluminum.
