Strange Engineering
Strange Ford 9" HD Pro Aluminium Case Kit - 3.250" Bore with Tapered Bearing Pinion Support
Strange Ford 9" HD Pro Aluminium Case Kit - 3.250" Bore with Tapered Bearing Pinion Support
SKU: P3203
PART #
Couldn't load pickup availability
App/Model: Ford 9"
The new strange pro HD case bridges the gap between the LW aluminium case & the ultra case, The strange Pro HD aluminium case is designed for drag race application and for the most abusive hi-performance street/strip applications. As with all strange aluminium cases, the HD Case is crafted from Superior 206-T4 heat treated aluminium has a 12% higher yield strength and a 32% higher tensile strength, compared to, commonly used, lesser grade 356-T6 aluminium.
Case Package Includes:

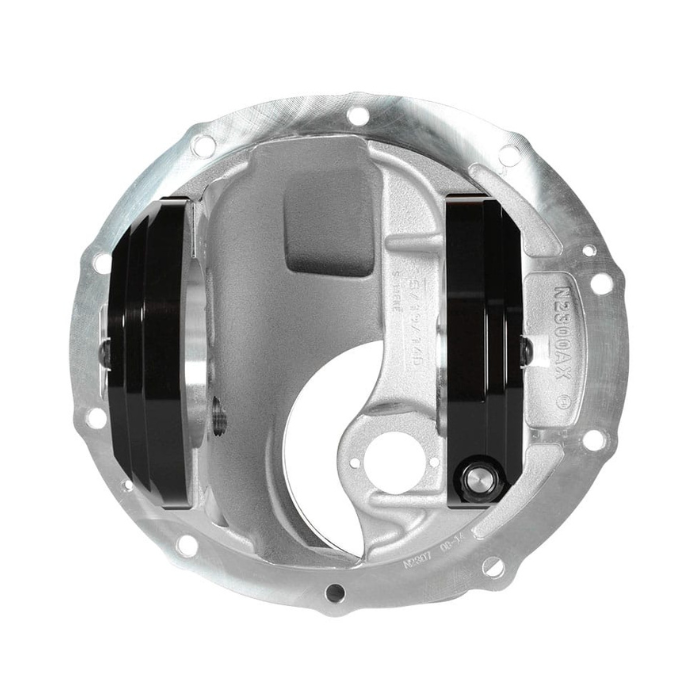

- Aluminium Case

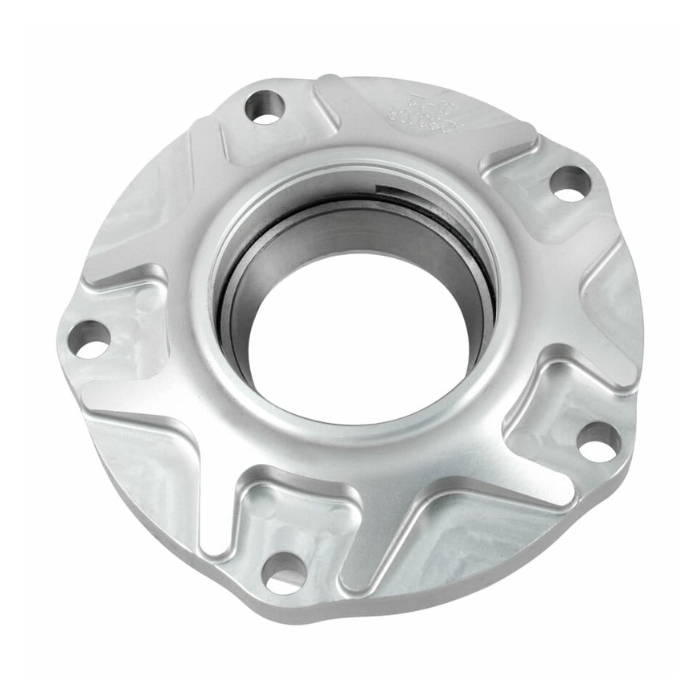

- Forged aluminum tapered bearing pinion support with races installed
- Pinion Depth Shim Kit
- High capacity wide Tail bearing
- Pinion seal retaining plate and snap ring
- Support bolts, washers, and O-ring
NOTES:
For 35 Spline Differentials
Wavetrac®Differentials & ARB Air Lockers® - These differentials will not fit inside the HD Pro case (Additional machining will be required)
This Case May Not Fit Your Housing - There are many aftermarket diff housings, please refer to housing clearance diagram to ensure this item is suitable

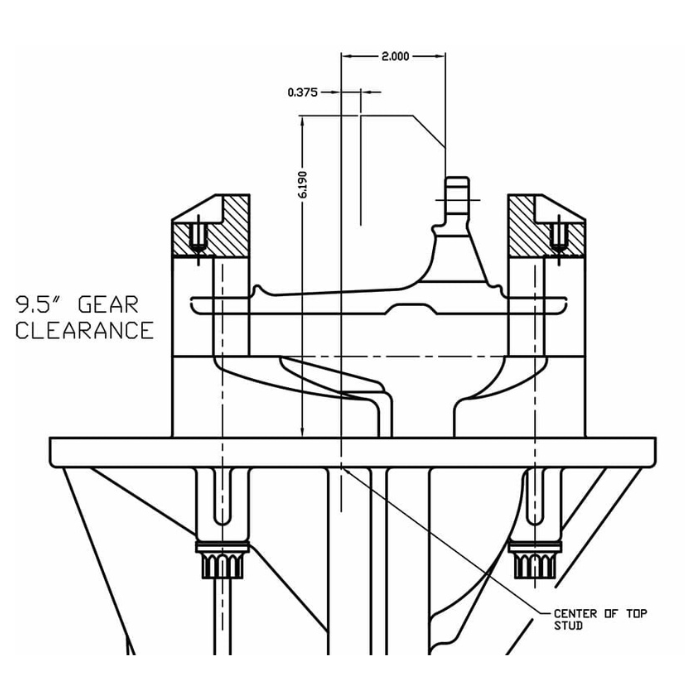

Using 9 1/2″ Gear Set
Check gear diagram for proper clearance
HD Pro Case – 3.250″ Bore
• Manufactured from 206-T4 heat treated aluminum
• 12% higher yield and 32% higher tensile strength compared to 356-T6
• Large oil channel provides optimal lubrication to pinion bearings
• Heavily reinforced tail bearing area
• Chrome moly studs encapsulated by billet aluminum main caps
• Solid adjuster nuts
• Accepts over-sized tail bearing for heavy loads and high RPM
• Designed for 9″ or 9 1/2″ gear sets
For more information see the Strange Ford 9" Cases - Guidelines & Torque Specs documentation HERE
