• Strange Ford 9" Pro Series Nodular Iron Case - 3.250" Bore Size
  • Strange Ford 9" Pro Series Nodular Iron Case - 3.250" Bore Size
  • Strange Ford 9" Pro Series Nodular Iron Case - 3.250" Bore Size
1 3

Strange Engineering

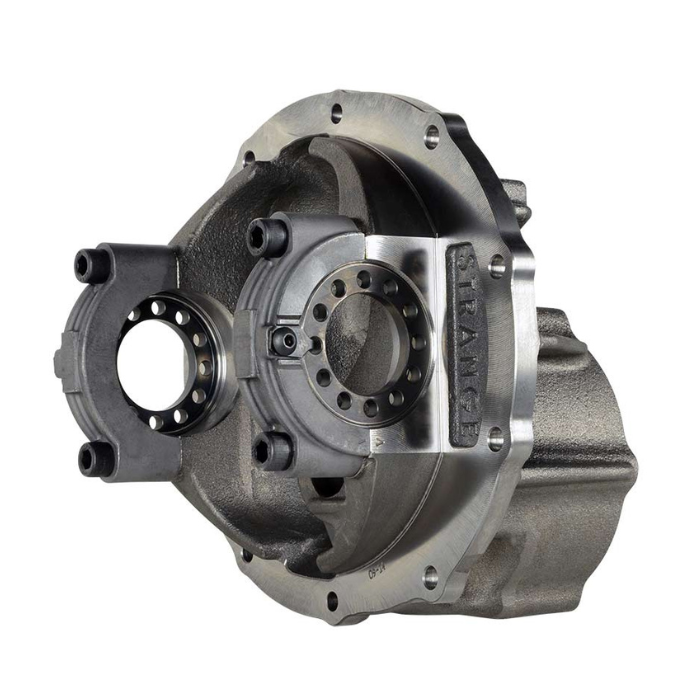

Strange Ford 9" Pro Series Nodular Iron Case - 3.250" Bore Size

Strange Ford 9" Pro Series Nodular Iron Case - 3.250" Bore Size

SKU: N1906

PART #

$739.00
$739.00
SALE Sold out
GST included. Shipping calculated at checkout.
In stock Sydney Warehouse - Ready to ship

App/Model:  Ford 9"

Has your stock 9" case or aftermarket big cap" case with 5/8" cap bolts failed? The Strange 9" nodular iron case is the solution- hopefully before the failure costs you a lot of money. Strange nodular cases are machined from D-4512 nodular iron which is 8% stronger than the nodular which is found in OEM cases. The 8% material strength is only a small portion of the total strength increase a Strange case offers.

For additional strength the case features:

  • Chrome-Moly bearing caps retained by socket head cap screws that exceed aircraft grade 8 specifications
  • Steel adjuster nuts
  • The pinion pilot bearing has been reinforced with superior D-4512 nodular and additional material
  • All bolt holes are deep tapped and cast with additional material surrounding the OD of the holes
  • Bearing bores and reinforcing ribs are all cast with additional material in critical areas
  • Ribs were carefully designed to further enhance rigidity
  • Spot faced stud holes prevent lubricant leaks and damaged mounting surfaces.

Strange nodular cases are virtually indestructible therefore the iron case is recommended for any vehicle which accepts a 9" housing and a 9" gear set.

With a housing manufactured from D-4512 nodular iron – which is significantly stronger than the iron used on factory rear ends.

Strange Pro Iron Center Section Cases are reinforced with extra ribs and additional material; especially apparent in the areas of pinion support and carrier bearing bores. Massive chrome-moly bearing caps are retained by aircraft grade fasteners and solid steel adjuster nuts help to easily and securely setup ring and pinion preload and backlash. Specially engineered lubrication channels make Strange Pro Iron Center Sections the most reliable in the industry. All exterior bolt holes are spot-faced to prevent the possibility of lubricant leaks.

For Heavy / High Horsepower Vehicles
Extremely rigid design minimizes deflection

Pro Iron Case
• 8-10% stronger material than stock nodular iron
• Additional mass in all critical areas
• Chrome moly main caps
• Solid adjuster nuts
• Designed & machined by Strange
• Cast in the USA

3.250″ Bore Size
• 35 spline differentials
• 35 and 40 spline Strange spools
